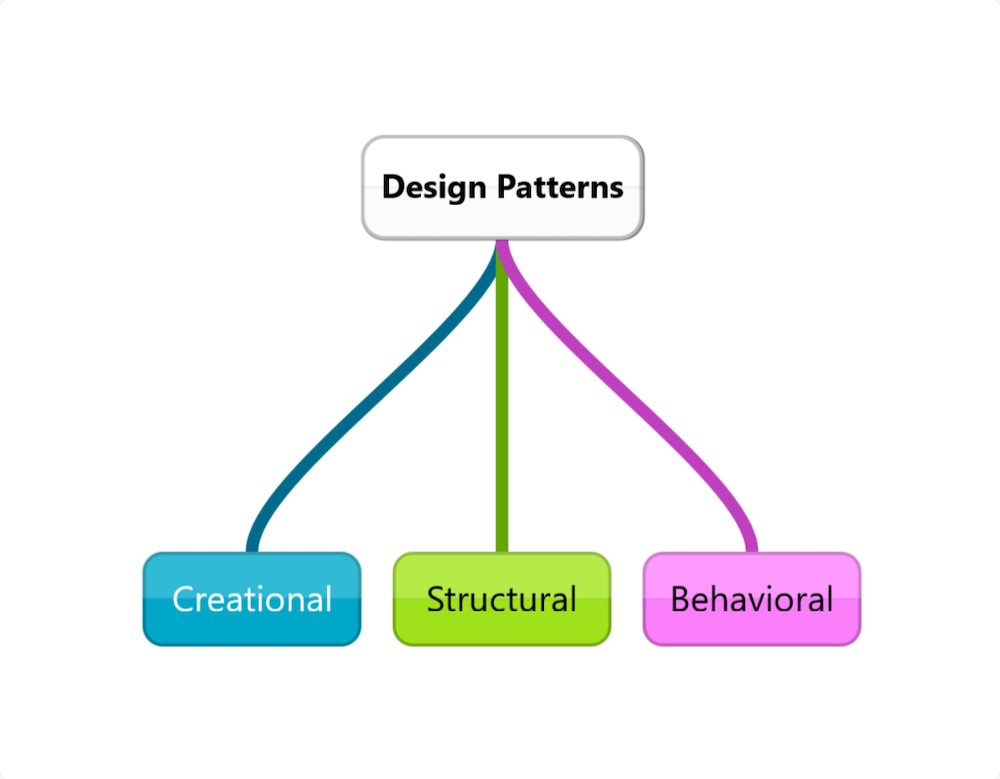

Creational Design Patterns in Java – Explained with Code

Creational patterns deal with object creation mechanisms, trying to create objects in a manner suitable to the situation. Instead of instantiating objects directly using new.

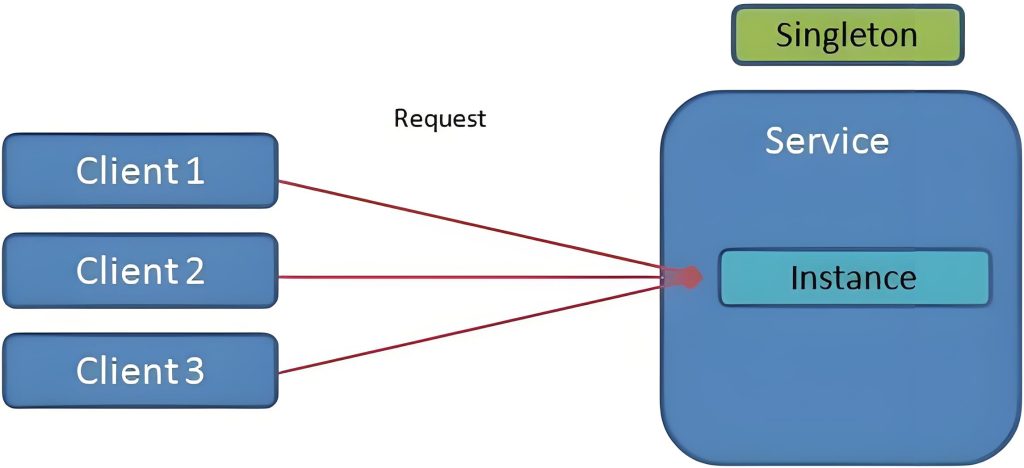

1. Singleton Pattern

Ensures a class has only one instance and provides a global point of access.

public class Singleton {
    private static Singleton instance;

    private Singleton() {}

    public static synchronized Singleton getInstance() {
        if (instance == null) {
            instance = new Singleton();
        }
        return instance;
    }
}

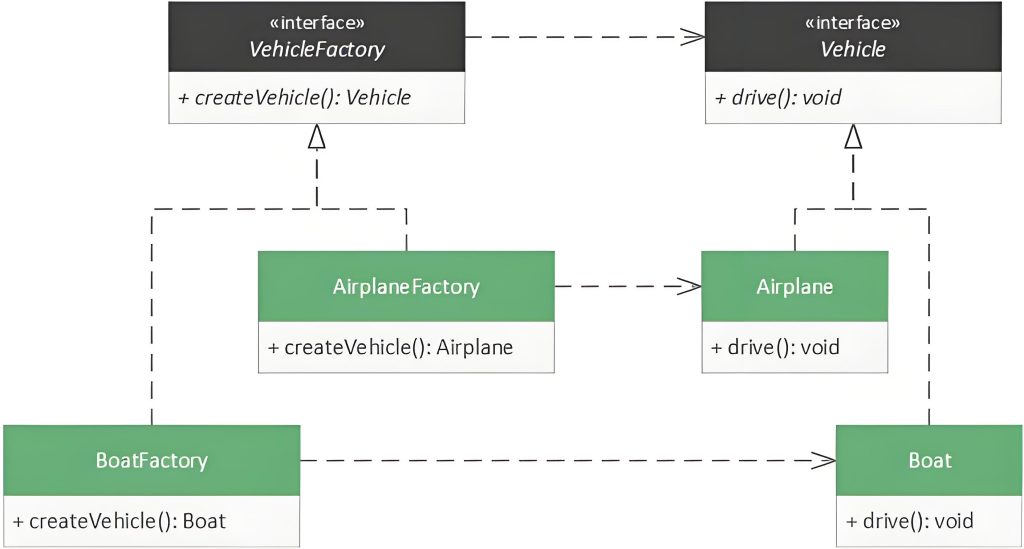

2. Factory Method Pattern

Defines an interface for creating an object but lets subclasses alter the type of objects that will be created.

interface Product {
    void use();
}

class ConcreteProductA implements Product {
    public void use() { System.out.println("Using Product A"); }
}

class Creator {
    public Product factoryMethod(String type) {
        if (type.equals("A")) {
            return new ConcreteProductA();
        }
        return null;
    }
}

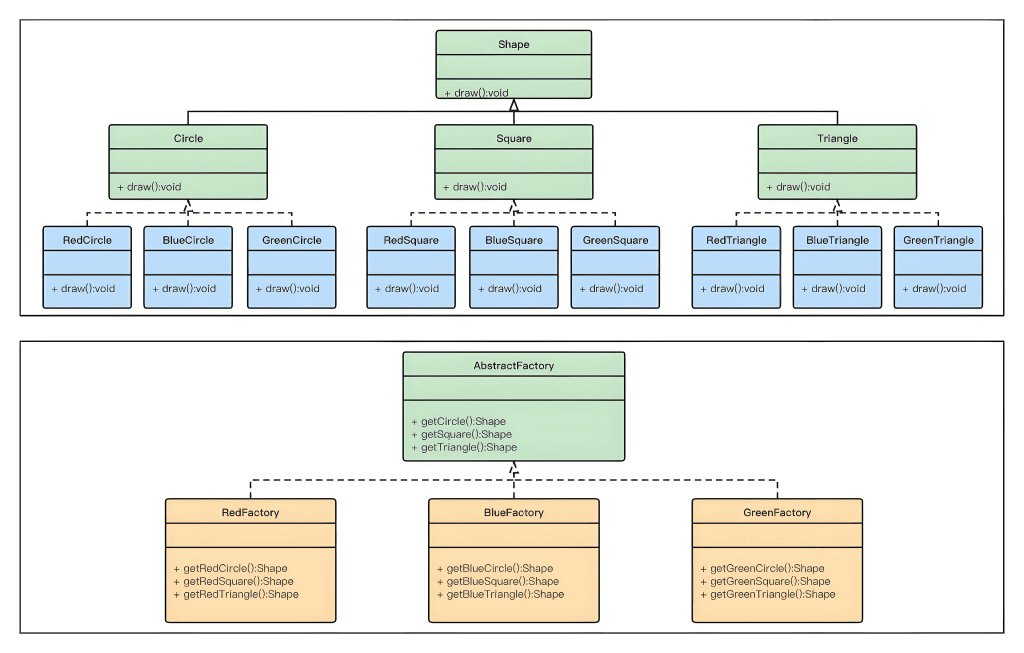

3. Abstract Factory Pattern

Provides an interface for creating families of related or dependent objects without specifying their concrete classes.

interface GUIFactory {
    Button createButton();
    Checkbox createCheckbox();
}

class WinFactory implements GUIFactory {
    public Button createButton() { return new WinButton(); }
    public Checkbox createCheckbox() { return new WinCheckbox(); }
}

Use when your system needs to be independent of how its objects are created.

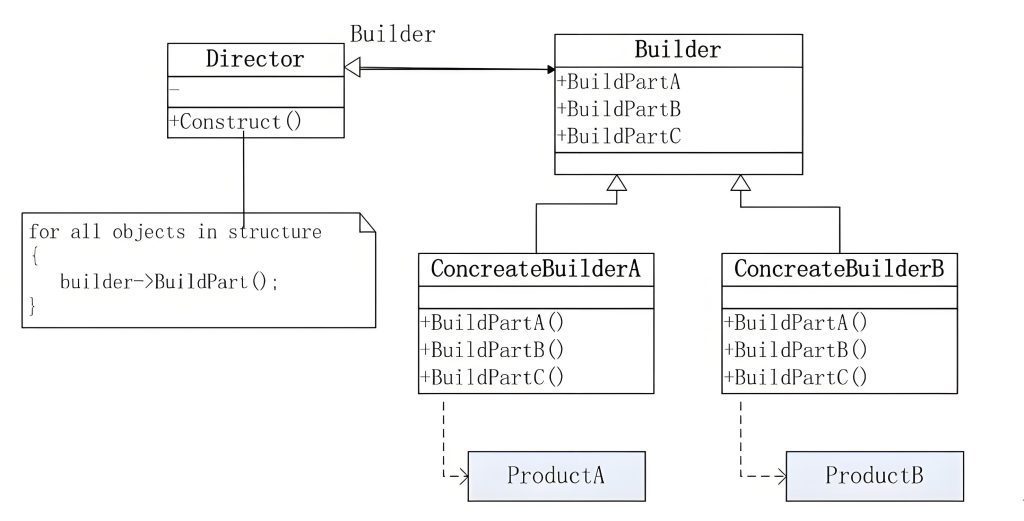

4. Builder Pattern

Separates the construction of a complex object from its representation, allowing the same construction process to create different representations.

class Computer {
    String CPU;
    String GPU;

    static class Builder {
        private String CPU;
        private String GPU;

        Builder setCPU(String cpu) { this.CPU = cpu; return this; }
        Builder setGPU(String gpu) { this.GPU = gpu; return this; }
        Computer build() {
            Computer c = new Computer();
            c.CPU = this.CPU;
            c.GPU = this.GPU;
            return c;
        }
    }
}

Use when you need to build a complex object step by step.

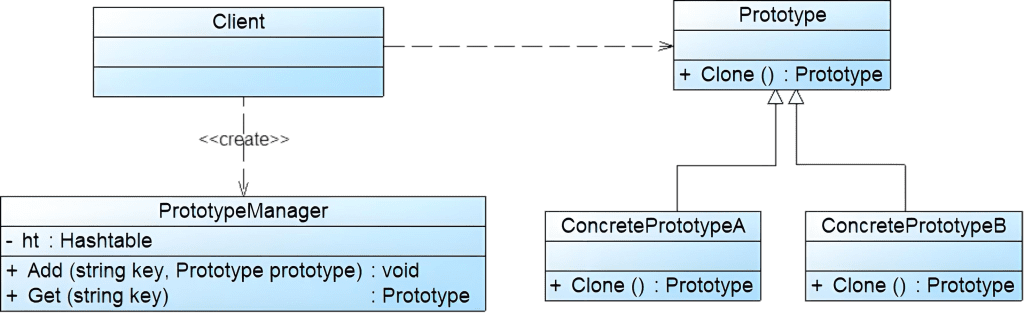

5. Prototype Pattern

Creates new objects by copying an existing object, known as the prototype.

class Prototype implements Cloneable {
    public Object clone() throws CloneNotSupportedException {
        return super.clone();
    }
}

Use when object creation is expensive and cloning gives better performance.

That’s all for today’s post — feel free to leave a comment and join the discussion！
